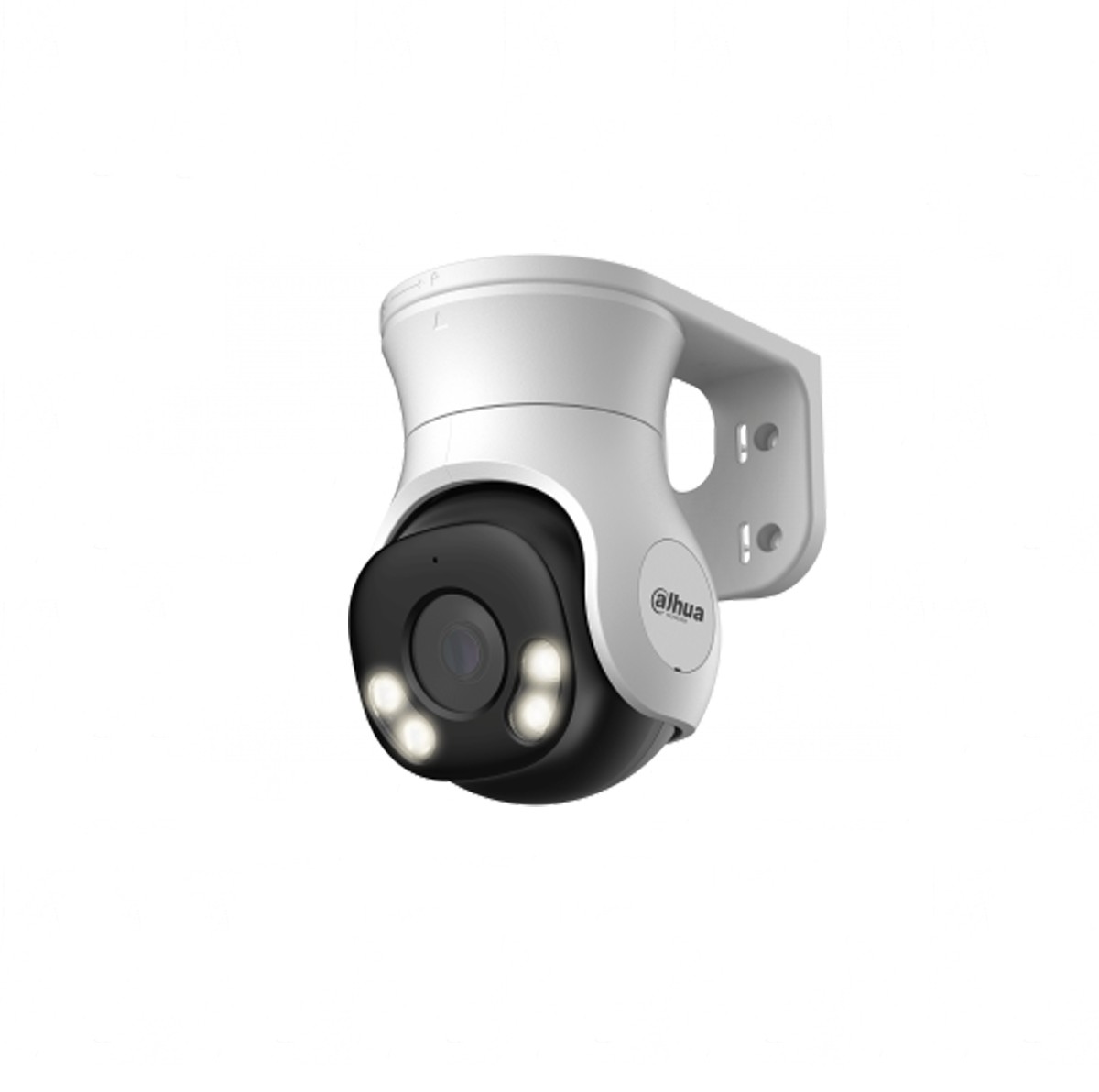

Dahua DH-HAC-PT1509AP-A-LED-0280B-S2 Уличная купольная PT HDCVI-видеокамера Full-color Starlight 5Мп.
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
Camera |
|
| Image Sensor | 5 MP CMOS |
| Max. Resolution | 2880 (H) × 1620 (V) |
| Scanning System | Progressive |
| Electronic Shutter Speed |
PAL: 1/25 s–1/100000 s NTSC: 1/30 s–1/100000 s |
| Min. Illumination |
0.001 lux@F1.0 (Color, 30IRE) 0 lux (Illuminator on) |
| S/N Ratio | >65 dB |
| Illumination Distance | 40 m (131.23 ft) |
| Illuminator On/Off Control | Auto |
| Illuminator Number | 4 (Warm light) |
| Angle Adjustment |
Pan: 0°–355° Tilt: 0°–90° |
Lens |
|
| Lens Type | Fixed-focal |
| Auto Focus | No |
| Lens Mount | M12 |
| Focal Length | 2.8 mm |
| Max. Aperture | F1.0 |
| Field of View | H: 111°; V: 57°; D: 131° |
| Iris Control | Fixed |
| Close Focus Distance | 1.5 m (4.92 ft) |
Video |
|
| Video Frame Rate |
CVI: PAL: 5M@25 fps; 4M@25 fps; 1080p@25 fps NTSC: 5M@25 fps; 4M@30 fps; 1080p@30 fps AHD: PAL: 4M@25 fps NTSC: 4M@30 fps TVI: PAL: 4M@25 fps NTSC: 4M@30 fps CVBS: PAL: 960H NTSC: 960H |
| Resolution | 5M (2880 × 1620); 4M (2560 × 1440); 1080p (1920 × 1080); 960H (960 × 576/960 × 480) |
| Day/Night | Color |
| BLC | BLC; HLC; WDR; HLC-Pro |
| WDR | 120 dB |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 3D NR |
| Illumination Mode | Smart Light |
| Defog | Electronic defog |
| Digital Zoom | 4× |
| Mirror | Yes |
| Privacy Masking | Off/On (8 areas, rectangle) |
Certification |
|
| Certifications |
CE-LVD: EN 62368-1; CE-EMC: EN 55032; EN 55035 |
Port |
|
| Video Output | Video output choices of CVI/TVI/AHD/CVBS by one BNC port |
| Audio Input | One channel built-in Mic |
Power |
|
| Power Supply | 12 VDC ± 30% (It is recommended to use a power adapter to supply the power for one camera) |
| Power Consumption | Max 7.7 W (12 VDC, LED on) |
Environment |
|
| Operating Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Operating Humidity | <95% (RH), non-condensing |
| Storage Temperature | –40 °C to +60 °C (–40 °F to +140 °F) |
| Storage Humidity | <95% (RH), non-condensing |
| Protection | IP66 |
| Anti-corrosion Level | Basic Protection |
Structure |
|
| Casing Material | Plastic |
| Product Dimensions | 92.9 mm × 91.3 mm × 130 mm (3.66" × 3.59" × 5.12") |
| Net Weight | 0.40 kg (0.88 lb) |
| Gross Weight | 0.64 kg (1.41 lb) |
| Installation | Wall mount; ceiling mount; vertical pole mount |
