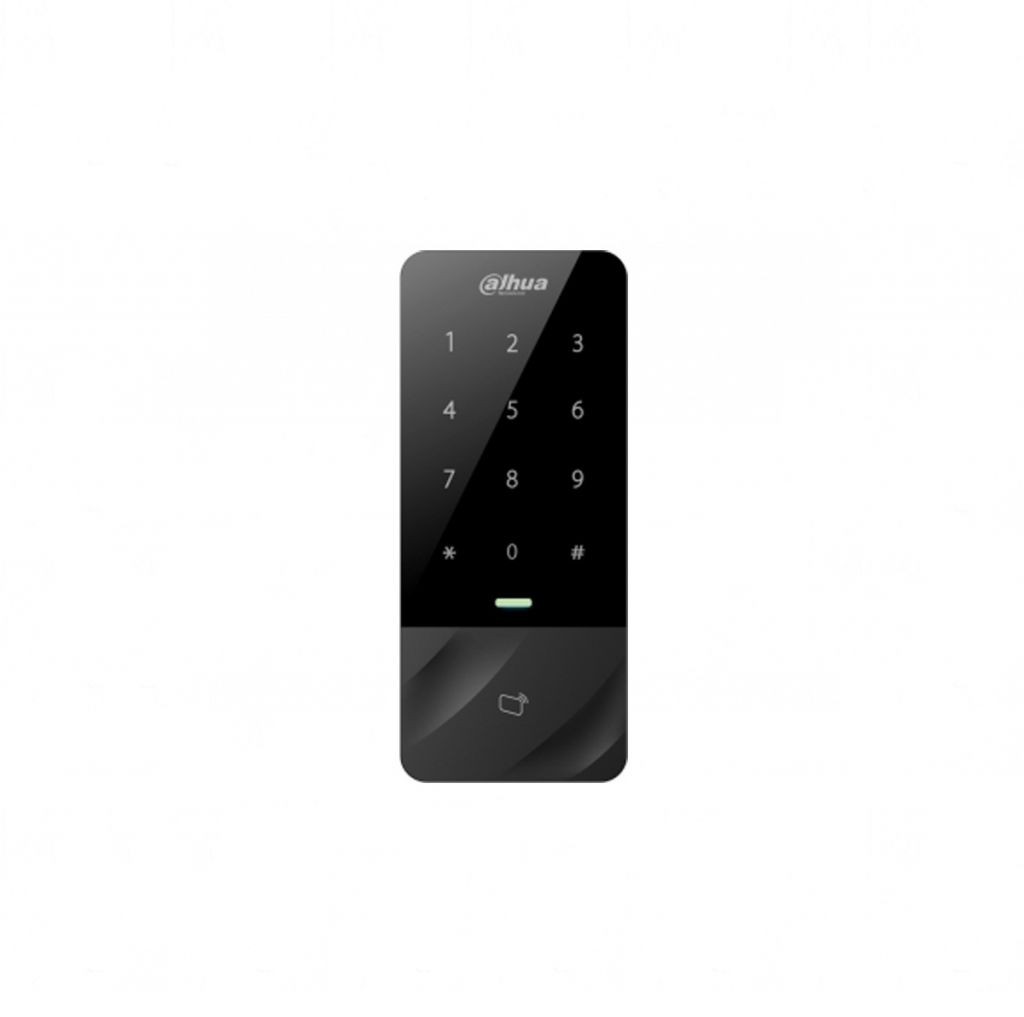

Dahua DHI-ASI1201E-D Влагозащищенный автономный RFID-считыватель с клавиатурой.
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
System |
|
| Main Processor | 32 Bit |
Input/Output Ports |
|
| Input | Door sensor x 1, Exit button x 1 |
| Output | Relay x 1 (Door lock,) |
| Reader | Reader x 1 |
Card Read |
|
| Read Format | 125KHz |
| Read Range | 1cm–2cm (max.) |
| Response Time | <0.1s |
Capacity |
|
| Cardholders | 30,000 |
| Events | 60,000 |
Function |
|
| User Management | General, VIP, Guest, Patrol, Block list, Duress |
| Alarm Function | Door time out alarm, Intrusion alarm, Duress alarm, Tamper alarm |
| Period Setting | Support 128 groups of schedule, 128 groups of periods and 128 groups of holiday periods |
Interface |
|
| To PC | RJ45(10/100M) |
| To Reader | Wiegand26/34, RS485 |
Genreal |
|
| Ingress Protection | IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| RTC | Yes |
| Beep Tone | Buzzer |
| Keyboard | Sensitive touch keypad with blue backlight |
| Power Supply | DC 9-15V/100mA |
| Operating Temperature | -30°C to +55°C |
| Working Humidity | 10%RH–90%RH (no-condensation) |
| Dimension(W×D×H) | 62.0mm×142.0mm×23.0mm |
| Weight | 0.5kg |
| Working Environment | Outdoor |
Certificates |
|
| CE | Yes |
| FCC | Yes |
