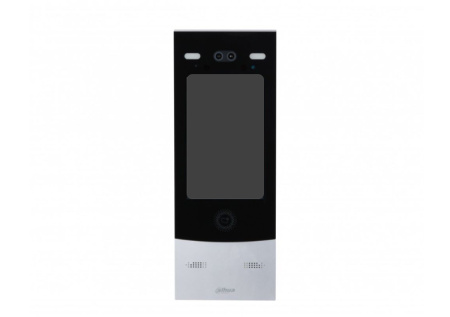

Dahua DHI-VTO7521G-S2 Вызывная панель с разрешением камеры 2мп и CMOS сенсором, емкостный сенсорный IPS экран с диагональю 8 дюймов
Под заказ
Наши менеджеры обязательно свяжутся с вами и уточнят условия заказа
Цена действительна только для интернет-магазина и может отличаться от цен в розничных магазинах
System |
|
| Main Processor | Embedded processor |
| Internet Protocol | IPv4, FTP, DNS, RTSP, RTP, TCP, UDP, SIP |
| Keyboard Type | Touch keyboard |
Basic |
|
| Appearance | G serials |
| Display | High definition IPS screen |
| Screen Type | Capacitive touch screen |
| Resolution | 800(H)×1280(V) |
| Camera | 2 MP CMOS |
| WDR | 120dB |
| Light Compensation |
Auto white light fill light Auto IR light fill light |
| Status Indicator | 1, blue-operation status |
| Voice Prompt | Yes |
| Housing Material | AL+PC+ABS |
Function |
|
| Unlock Mode | Remote/password/card unlock |
| Online Update | Yes |
| Full Duplex Communication | Yes |
| Snapshot When Unlocking Doors | Yes |
| Leave Photos and Messages | Yes |
| Web Configuration | Yes |
| Issue Card Locally | Yes |
| Auto-Registration | Yes |
Performance |
|
| Card Capacity | 10, 000 |
Port |
|
| RS-485 | 1 |
| Wiegand | 1 |
| Ethernet | 1 10M/100M/1000M Ethernet port |
| Alarm Output | 2 (Dry contact) |
| Alarm Linkage | Yes |
| Power Output | 1 DC 12V/100ma |
| Exit Button | 1 |
| Door Status Detection | 1 |
| Lock Control | 1, normally on or off by default |
| Storage | Micro SD card (up to 64GB reserved for software ) |
Alarm |
|
| Tamper Alarm | Yes |
| Duress Alarm | Yes |
| Door Sensor Timeout | Yes |
Regular |
|
| Ingress Protection | IP66 (Apply silica gel to gaps between the device and the wall. Liquid sodium silicate is recommended. For details, see the quick start guide.) |
| Power Supply | Optional |
| Power Supply Mode | DC 12V/2A |
| Power Consumption | ≤24.0W |
| Product Dimensions | 389mm×145mm×43mm (15.31"×5.71"×1.69") |
| Packaging Dimensions | 413mm×182mm×104mm (16.26"×7.17"×4.09") |
| Operating Temperature | -20°C to +60°C (-4°F to + 140°F) |
| Operating Humidity | 10%RH–90%RH |
| Operating Altitude | 86kPa to 106kPa |
| Gross Weight | 1.91 kg (4.21 lb) |
| Accessory | Mount plate |
| Installation Method | Surface mount and flush mount |
| Operating Environment | Outdoor |
